Understanding the Tank of an Ultrasonic Cleaning Machine: Materials, Design, and Efficiency

Ultrasonic cleaning machines have become essential tools across industries, from healthcare and automotive to precision electronics. At the core of these machines is the cleaning tank, which holds the cleaning solution and houses the ultrasonic transducers responsible for generating cavitation bubbles. The design and material of the tank significantly impact the effectiveness, longevity, and overall performance of the ultrasonic cleaner.

The Role of the Tank in Ultrasonic Cleaning Machines

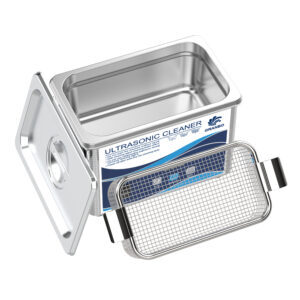

Granbo GA008G Ultrasonic Cleaner

The cleaning tank serves as the primary chamber where ultrasonic waves propagate through the liquid medium to remove contaminants from immersed objects. Several critical functions make the tank an indispensable component of the ultrasonic cleaner:

• Containment of the Cleaning Solution: The tank must be resistant to chemical corrosion and wear due to prolonged exposure to cleaning agents.
• Transmission of Ultrasonic Waves: The material and construction of the tank influence how well the ultrasonic energy is transmitted and distributed.
• Heat and Energy Management: Many ultrasonic cleaners include heating elements, requiring the tank to efficiently transfer and maintain temperature.
• Structural Durability: The tank must withstand repeated cycles of ultrasonic vibrations without developing cracks or leaks.

A well-designed tank ensures consistent cleaning performance and enhances the durability of the ultrasonic cleaning machine.

Choosing the Right Material for Ultrasonic Cleaning Tanks

The material of the tank plays a crucial role in its longevity and efficiency. Different materials offer varying levels of chemical resistance, durability, and acoustic properties.

• Stainless Steel (304 & 316 Grades): The most commonly used material, stainless steel provides excellent corrosion resistance, durability, and efficient ultrasonic wave propagation.
• Titanium-Alloy Tanks: Used in specialized applications, titanium tanks offer superior resistance to aggressive chemicals and longer service life.
• Plastic-Coated Tanks: In some cases, ultrasonic tanks are lined with protective plastic coatings to handle highly corrosive solutions.
• Aluminum Tanks: While aluminum conducts heat well, it is less common due to lower resistance to cavitation damage and chemical exposure.

When selecting a tank material, factors such as the type of cleaning solution, frequency of use, and specific industry requirements should be considered.

Tank Design Considerations for Optimal Performance

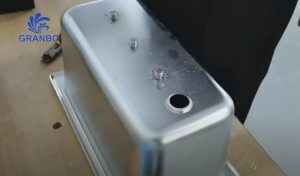

Granbosonic GW0306 Ultrasonic Cleaner

The efficiency of an ultrasonic cleaning machine heavily depends on the design of its tank. Engineers must carefully plan various aspects of the tank to maximize cleaning effectiveness and durability.

• Tank Size and Capacity: The dimensions should align with the size of the items being cleaned while ensuring even distribution of ultrasonic waves.
• Wall Thickness: Thicker walls improve durability but may affect wave transmission. Finding the right balance is crucial.
• Rounded Corners and Smooth Surfaces: Sharp edges and rough surfaces can cause uneven distribution of ultrasonic energy, leading to suboptimal cleaning.
• Drainage and Overflow Features: Proper drainage ensures easy removal of used cleaning solutions, while overflow features prevent spillage and maintain solution levels.
• Heating Elements Integration: Tanks with built-in heating elements must have efficient thermal conductivity to enhance cleaning effectiveness.

An optimized tank design reduces energy loss, improves wave uniformity, and prolongs the lifespan of the ultrasonic cleaner.

Common Issues and Maintenance of Ultrasonic Cleaning Tanks

Despite their robust construction, ultrasonic cleaning tanks are susceptible to wear and tear over time. Common issues include:

• Cavitation Erosion: Continuous exposure to high-frequency waves can lead to pitting or surface wear. Periodic inspections can help detect early signs of erosion.
• Corrosion and Chemical Damage: Certain cleaning solutions may gradually degrade the tank material, necessitating the use of corrosion-resistant coatings or materials.
• Leakage and Structural Damage: Prolonged stress and improper maintenance can lead to leaks, which may compromise the machine’s performance.
• Residue Build-Up: Deposits from contaminants and cleaning agents can accumulate over time, affecting cleaning efficiency. Regular cleaning of the tank is essential.

Routine maintenance, such as using the appropriate cleaning agents, conducting periodic inspections, and avoiding overloading the tank, can help extend its lifespan and maintain optimal performance.

Future Innovations in Ultrasonic Cleaning Tank Technology

Advancements in ultrasonic cleaning technology continue to drive improvements in tank design and materials. Some emerging trends include:

• Self-Cleaning Tank Surfaces: Innovations in coatings and nanotechnology are enabling tanks to resist residue buildup and enhance cleaning efficiency.
• Smart Tanks with Sensors: Integrating IoT technology allows real-time monitoring of temperature, solution concentration, and cavitation performance.
• Energy-Efficient Materials: New alloys and composites are being developed to improve wave transmission while reducing energy consumption.
• Modular Tank Designs: Interchangeable and customizable tank configurations provide greater flexibility for different industrial applications.

These advancements aim to enhance the effectiveness, durability, and sustainability of ultrasonic cleaning machines across industries.

The tank of an ultrasonic cleaning machine plays a vital role in ensuring effective and efficient cleaning. Its material composition, design, and maintenance all contribute to the machine’s overall performance and longevity. As technology progresses, we can expect even more advanced tank designs that optimize cleaning efficiency and durability, making ultrasonic cleaning machines even more indispensable in various industries.

References

1. Liu, J., & Chen, Y. (2023). Advances in Ultrasonic Cleaning Tank Materials and Design. Journal of Industrial Engineering and Technology, 30(2), 178-192.
2. Patel, R., & Wang, L. (2022). Optimizing Ultrasonic Cleaning Efficiency through Tank Geometry and Material Selection. Ultrasonics and Applications, 27(4), 65-79.
3. Smith, T., & Zhao, H. (2021). Corrosion Resistance in Ultrasonic Cleaning Tanks: A Comparative Study of Stainless Steel and Titanium Alloys. Materials Science Journal, 45(1), 88-104.
4. Anderson, P. (2020). Innovative Coatings for Ultrasonic Cleaning Machine Tanks: Improving Performance and Longevity. Surface Engineering Review, 52(3), 121-136.
