Unlocking the Power of Ultrasonic Cleaners: The Role and Evolution of Transducers

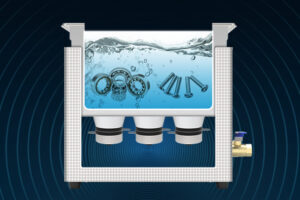

Ultrasonic cleaners have become indispensable tools in industries ranging from healthcare to manufacturing, offering unparalleled precision and efficiency in cleaning processes. At the heart of these devices lies the ultrasonic transducer, a critical component responsible for converting electrical energy into high-frequency sound waves. These sound waves create microscopic bubbles in a cleaning solution, a phenomenon known as cavitation, which effectively removes contaminants from surfaces. This article delves into the intricacies of ultrasonic transducers, exploring their design, functionality, and the latest advancements that are shaping the future of ultrasonic cleaning technology.

The Science Behind Ultrasonic Transducers

Ultrasonic transducers are piezoelectric devices that transform electrical energy into mechanical vibrations. These vibrations generate sound waves at frequencies typically ranging from 20 kHz to 200 kHz, which are then transmitted into a cleaning solution. The key to their effectiveness lies in the phenomenon of cavitation, where rapid pressure changes in the liquid create tiny bubbles that implode, producing shock waves capable of dislodging even the most stubborn dirt and grime.

The piezoelectric effect, discovered in the late 19th century, is the foundation of ultrasonic transducer technology. When an electric field is applied to certain materials, such as quartz or specialized ceramics, they undergo mechanical deformation. This property allows ultrasonic transducers to oscillate at high frequencies, making them ideal for applications requiring precise and consistent energy delivery.

Key Components and Design Considerations

1. Piezoelectric Crystals:
The core of an ultrasonic transducer is its piezoelectric crystal, typically made from materials like lead zirconate titanate (PZT). These crystals are chosen for their high electromechanical coupling efficiency, which ensures minimal energy loss during the conversion process.

2. Electrodes and Housing:
Electrodes are attached to the piezoelectric crystal to apply the electric field, while the housing provides structural support and protects the internal components from environmental factors. The design of the housing also influences the transducer’s resonance frequency and durability.

3. Matching Layers:
To optimize energy transfer between the transducer and the cleaning solution, matching layers are often incorporated into the design. These layers reduce impedance mismatches, ensuring that more energy is transmitted into the liquid for effective cavitation.

4. Cooling Systems:
High-power ultrasonic transducers generate significant heat during operation. Advanced designs incorporate cooling systems, such as water jackets or heat sinks, to maintain optimal performance and extend the lifespan of the device.

Applications of Ultrasonic Transducers in Cleaning

Ultrasonic transducers are used in a wide range of cleaning applications, each requiring specific frequency and power settings:

1. Medical and Dental Instruments:
Ultrasonic cleaners are widely used to sterilize surgical tools and dental instruments. The high-frequency vibrations ensure thorough cleaning of intricate surfaces, removing blood, tissue, and other contaminants.

2. Industrial Parts Cleaning:
In manufacturing, ultrasonic transducers are employed to clean engine components, electronic parts, and precision machinery. The ability to clean complex geometries without disassembly makes them invaluable in industrial settings.

3. Jewelry and Optics:
Delicate items like jewelry and optical lenses require gentle yet effective cleaning. Ultrasonic transducers operating at lower frequencies provide the necessary precision without causing damage.

4. Food Processing Equipment:
In the food industry, ultrasonic cleaners are used to sanitize equipment, ensuring compliance with hygiene standards. The non-toxic nature of ultrasonic cleaning makes it ideal for this application.

Advancements in Ultrasonic Transducer Technology

Recent innovations have significantly enhanced the performance and versatility of ultrasonic transducers:

1. Multi-Frequency Transducers:
Modern ultrasonic cleaners often feature multi-frequency transducers, allowing users to switch between frequencies for different cleaning tasks. This flexibility improves efficiency and reduces the need for multiple cleaning systems.

2. Digital Control Systems:
The integration of digital control systems enables precise adjustment of frequency, power, and cleaning cycles. These systems also provide real-time monitoring and diagnostics, ensuring consistent performance.

3. Energy-Efficient Designs:
Advances in materials and engineering have led to the development of energy-efficient transducers that consume less power while delivering superior cleaning results. This is particularly important for large-scale industrial applications.

4. Miniaturization:
The trend toward miniaturization has resulted in compact ultrasonic transducers that are suitable for portable and handheld cleaning devices. These innovations are expanding the use of ultrasonic cleaning in new markets.

Challenges and Future Directions

Despite their many advantages, ultrasonic transducers face several challenges that researchers are actively addressing:

1. Heat Management:
High-power transducers generate significant heat, which can affect performance and longevity. Future designs may incorporate advanced cooling technologies or heat-resistant materials to mitigate this issue.

2. Material Limitations:
The piezoelectric materials used in transducers are often brittle and prone to fatigue. Ongoing research aims to develop more durable materials that can withstand prolonged use without degradation.

3. Cost and Accessibility:
While ultrasonic cleaning technology has become more affordable, high-end systems remain costly. Efforts to reduce production costs and improve accessibility are expected to drive wider adoption.

4. Integration with IoT:
The integration of ultrasonic transducers with Internet of Things (IoT) platforms is a promising area of development. Smart ultrasonic cleaners could offer remote monitoring, predictive maintenance, and automated cleaning cycles, further enhancing their utility.

The ultrasonic transducer is a cornerstone of modern cleaning technology, enabling precise and efficient removal of contaminants across a wide range of applications. As advancements in materials, design, and digital control continue to evolve, these devices are poised to become even more versatile and effective. Whether in healthcare, manufacturing, or consumer products, the role of ultrasonic transducers in shaping the future of cleaning technology cannot be overstated.
